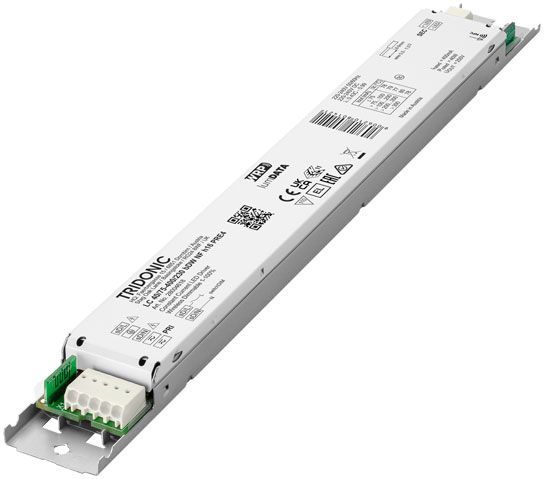

Tridonic LC 40/75-400 230 Mymesh NF h16 PRE4

Article number: 28005725

Tridonic LED driver with internal antenna. Mymesh ready means that it can be integrated in a Mymesh wireless network and the Mymesh licence can be activated at any time.

Installation

Can be used built-in (subject to design-in guides)

Technical

Output power
40 W
Electrical
  • input: 198-264 VAC
    176-280 VDCoutput voltage: 45-230 VDC
  • Output current: 75-400 mA
    • Dimensions
    360x30x16mm
    IP rating
    IP20

    Network

  • Mymesh V3 / 2.4GHz
  • Mymesh ready concept

    • Connections

  • Push terminals for simple wiring
  • Output terminals (+/–) equipped twice for more flexibility in the application

    • Features

  • lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Can be either used built-in or independent with clip-on strainrelief
  • Dimming range 1 to 100 %
  • Nominal lifetime up to 100,000 h
  • 50% to 60% additional energy savings with automatic light control using motion detection and daylight harvesting.
