Helvar Freedom sensors

Freedom Sense

Article number: HEL.5630.W030.001

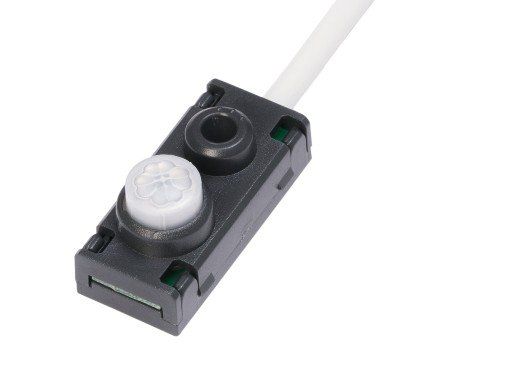

This is a small PIR/lux sensor that combines a light sensor for constant light control and a passive infrared movement detector. This sensor can be used with the smart wireless lighting control solution Helvar Freedom. Available in white and black.

Installation

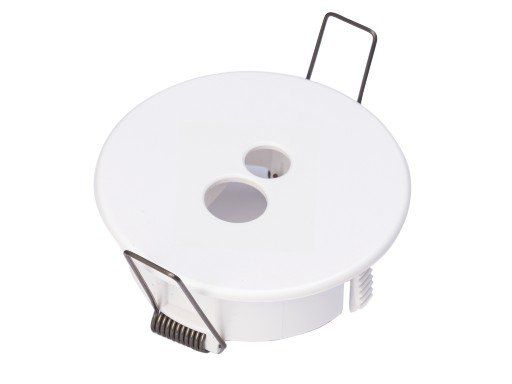

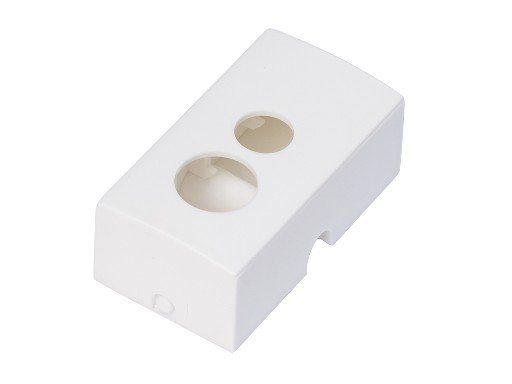

Simple installation. Provided with mounting features that can be snapped into sheet metal: two on each long side, and two on the rear. Push-in connection with the Helvar Freedom node. Holder accessories available for mounting it in a luminaire or ceiling.

Technical

Electrical
by Helvar Freedom BLC
Protection
class I & II
Dimensions/weight
  • 32.4 × 15.5 × 18mm / 22g
  • 30, 80 or 120mm cable
    • IP rating
    IP30

    Network

  • Mymesh 2.4GHz

    • Detection

  • Installation height: 2.4-4m.
  • Range: upto 8m.

    • Lux range

  • 5 - 5000 lux
