DAN.MNPIRWZ

Article number: DAN.MNPIRWZ

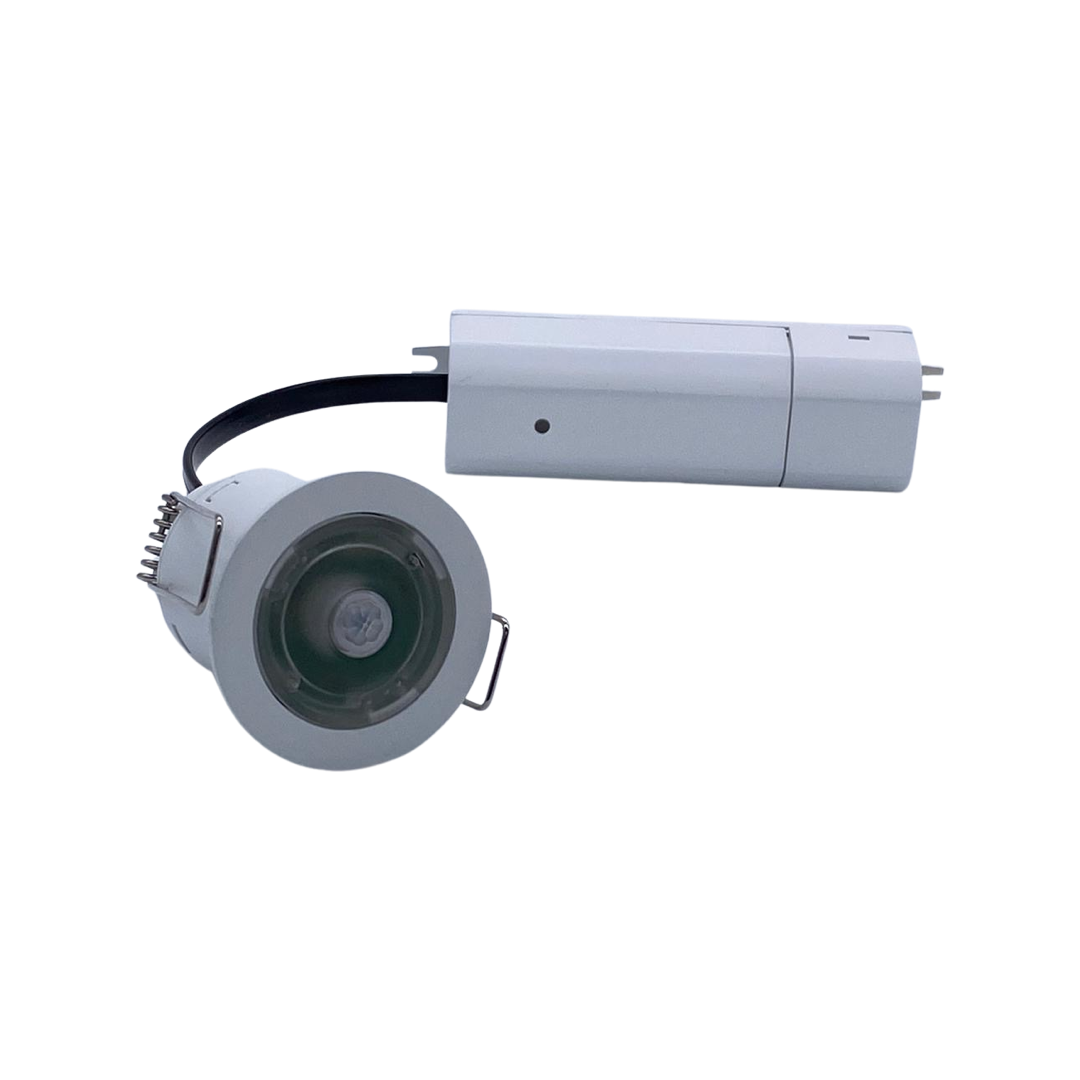

This flush mounted CBU-MNPIR5MSW is suitable for easy mounting through a 38/40mm diameter hole into a ceiling void which is at least 60mm deep. Configurable for any room occupancy style.

Installation

To be installed by a competent person with reference to BS7671 or equivalent local standards. If in doubt consult a qualified electrician. A mounting bezel is supplied.

Technical

Electrical
100-240Vac 50/60Hz
Protection
class II
Dimensions/weight
ø46.5 x 55.3mm
+ PSU ø32.5 x 118.2mm / 85g
IP rating
IP40

Network

  • Mymesh 2.4GHz

    • Detection

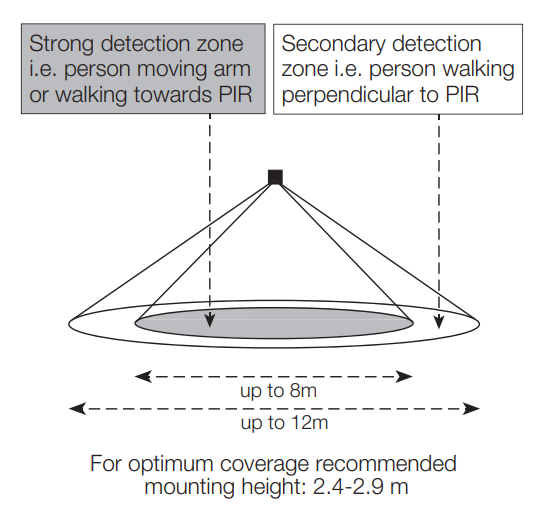

  • Installation height: 2.4-2.9m.
  • Range: upto 8/12m.

    • Lux range

  • 5 - 2000 lux
