Mymesh takes the climate ceiling one step further. Integrated in a climate ceiling, the TriSensor adds innovative measurement- and control technology, especially for the measurement of occupancy and room temperature. Occupancy (number of people in the room) is leading for the required ventilation amount.

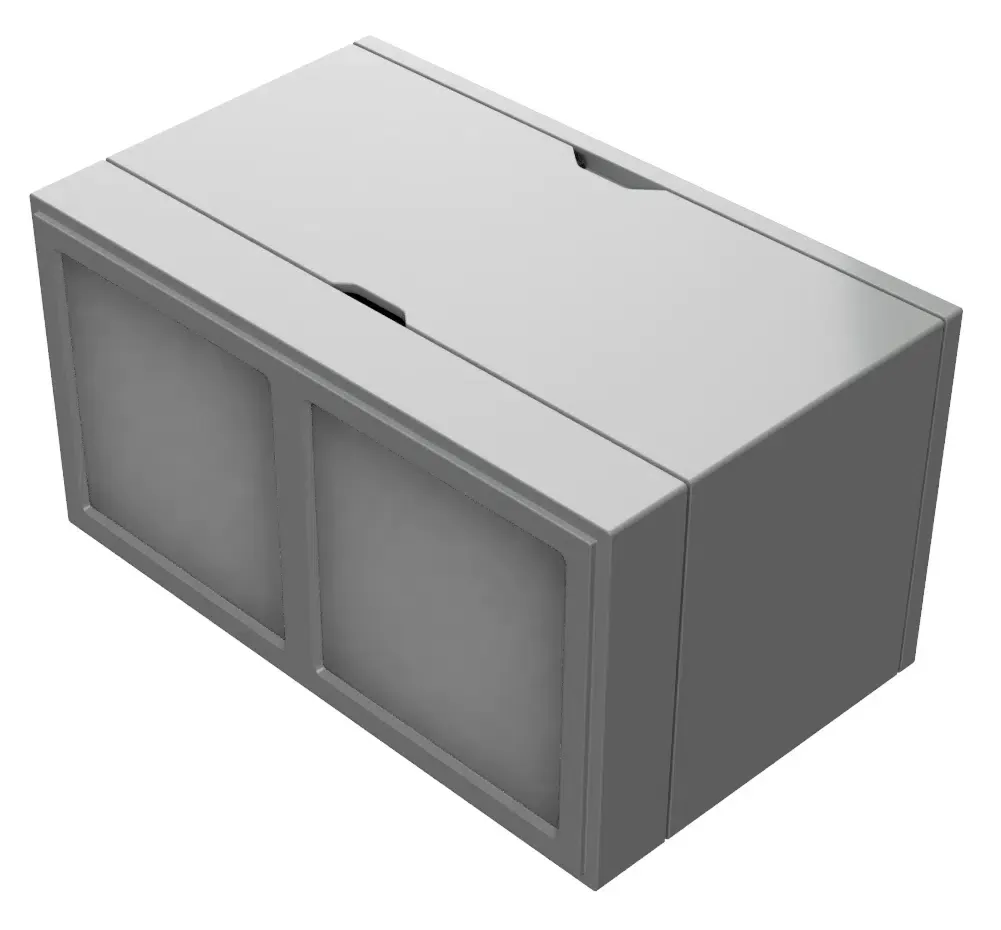

The innovative sensor technology of the TriSensor makes accurate measurement of the room temperature from the ceiling possible. Second beaconing is used for location based services for employees. With a room control app, the end-user can change the settings of the room temperature and lighting making wall switches and panels redundant.

The Mymesh network and the Building Automation System work closely together in controlling the climate ceiling. Light control is locally handled by the Mymesh network using motion- and occupancy detection for switching and daylight harvesting for dimming the lighting. Both TriSensor and Room Control app are connected to the Building Automation System via the Mymesh REST API. The Building Automation System handles the actual room measurements versus the given setpoints via the app.

Installed at a typical ceiling height of 3 meter, the occupancy and PIR sensor cover an area of approximately 10m2. Like the climate ceiling the Tri-Sensor needs to cover the area and is applied in a modular grid/pattern.

RAL7035 Light Grey

TriSensor RAL9016 Traffic White

RAL9005 Black
