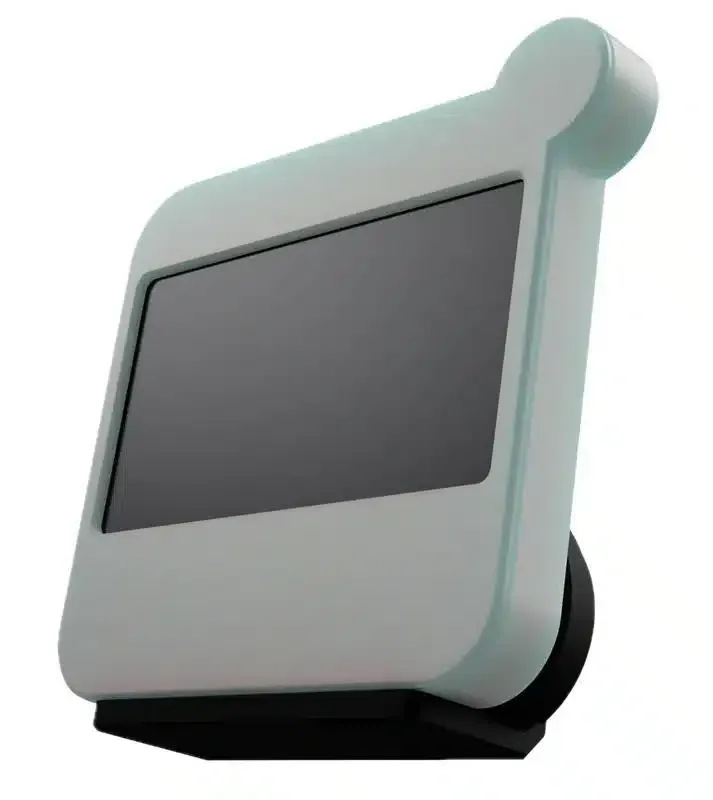

BLC - Glare

Article number: BLC.5442.001

The BLC-Glare / Twilight Sensor is a wireless light sensor for glare and twilight detection. The sensor is equipped with a battery and solar cell for charging the battery.

Installation

  • The BLC-Glare/Twilight sensor can be easily installed by placing the mounting bracket on the inside of the window frame and then clicking the BLC-Glare/Twilight sensor in the bracket with the light sensor facing outside.
  • Technical

    Electrical
  • Charged by integral solar panel
  • Detection
  • Ambient light sensor
  • Dimensions/weight
    14.12 x 49.5 x 49.5 mm / 21g
    IP rating
    IP20

    Network

  • Mymesh 2.4GHz
  • Features

    The Mymesh network and the Building Automation System work closely together in controlling the climate ceiling. Light control is locally handled by the Mymesh network using motion- and occupancy detection for switching and daylight harvesting for dimming the lighting. Both TriSensor and Room Control app are connected to the Building Automation System via the Mymesh REST API. The Building Automation System handles the actual room measurements versus the given setpoints via the app.
  • Installed at a typical ceiling height of 3 meter, the occupancy and PIR sensor cover an area of approximately 10m2. Like the climate ceiling the Tri-Sensor needs to cover the area and is applied in a modular grid/pattern.
  • Options

  • Green LED for identification during
    commissioning
