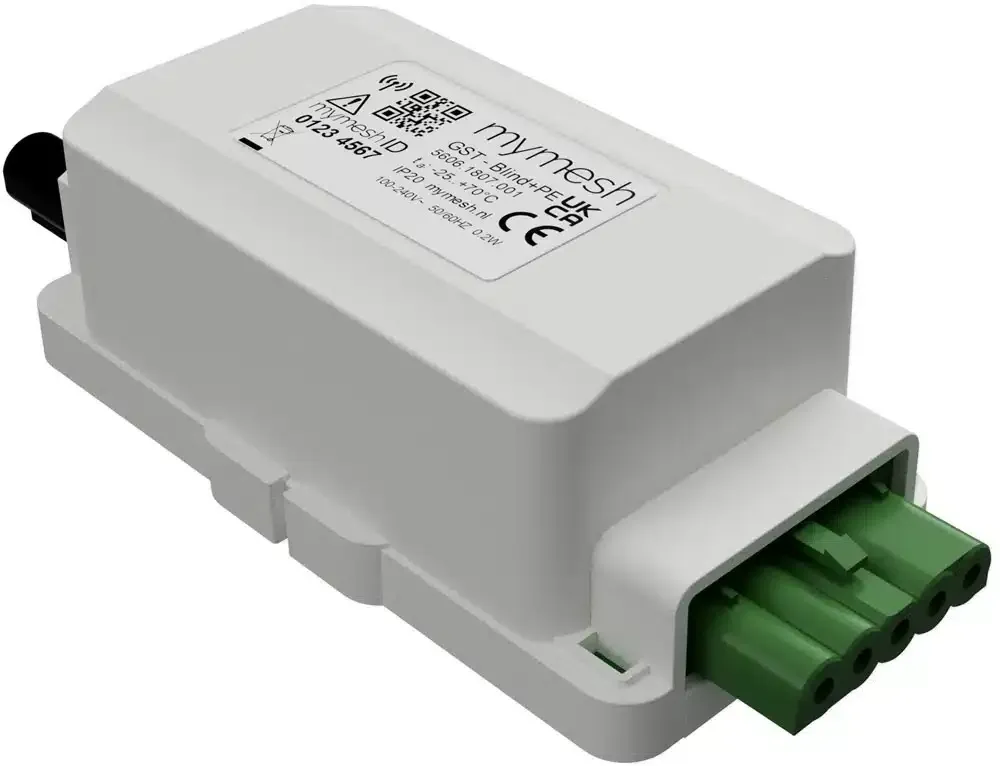

GST - Blind+PE

Article number: BLC.1807.001

With Mymesh the sun blinds are an integral part of the zone control. The GST - Blind+PE is a smart wireless blind control module with two relais for switching (up and down) of the blind motor with automatic calibration of the top and bottom end points. Including Protective earth connection.

Installation

The GST - Blind+PE module clips into an included bracket which is secured with one screw of blind rivet. Wieland GST pluggable electrical installation. Faster, smarter and safer. Mains powered single phase 230VAC (+/-10% 50Hz).

Technical

Electrical
100-240VAC, 50/60Hz
Control / Output
  • single motor
  • 150VA max.
    • Dimensions/weight
    121.86 x 49.69 x 33.87 mm / 165g
    IP rating
    IP20

    Network

  • Mymesh V3 / 2.4GHz

    • Connections

  • Mains input connector: GST18I3L S1H SW
  • Output connector: GST15i5 I5 L
  • Contra connector not included

    • Features

  • two relays for switching (up and down) of the blind motor
  • with automatic calibration of the top and bottom end points.
  • Class I
