BLC Track

Article number: BLC.1200.001 (Black) / BLC.1200.101 (Grey)

The Mymesh BLC DALI Track is a smart lighting module for direct mounting with a click system on a Nordic Global pulse rail (3-phase DALI track). With the Mymesh BLC DALI Track, up to 35 DALI dimmable spotlights (incl. tunable white) can be controlled simultaneously on a single track using broadcast control. The spotlights are not individually adjustable

Installation

  • Installation is very simple via the Nordic Global pulse rail (3-phase DALI track).
  • up to 35 luminaires using broadcast control

    • Technical

    Electrical
  • 230VAC, 50Hz
  • 10A (max)
    • Control
  • DALI
  • 35 max.
    • Dimensions/weight
    110 x 58 x 68mm / 139 gram
    IP rating
    IP20

    Network

  • Mymesh 2.4GHz

    • Features

  • With a BLC DALI Track you can easily control any DALI dimmable luminaire including DALI Type 8 (DT8) for tuneable white and RGB(W) control.

    • Options

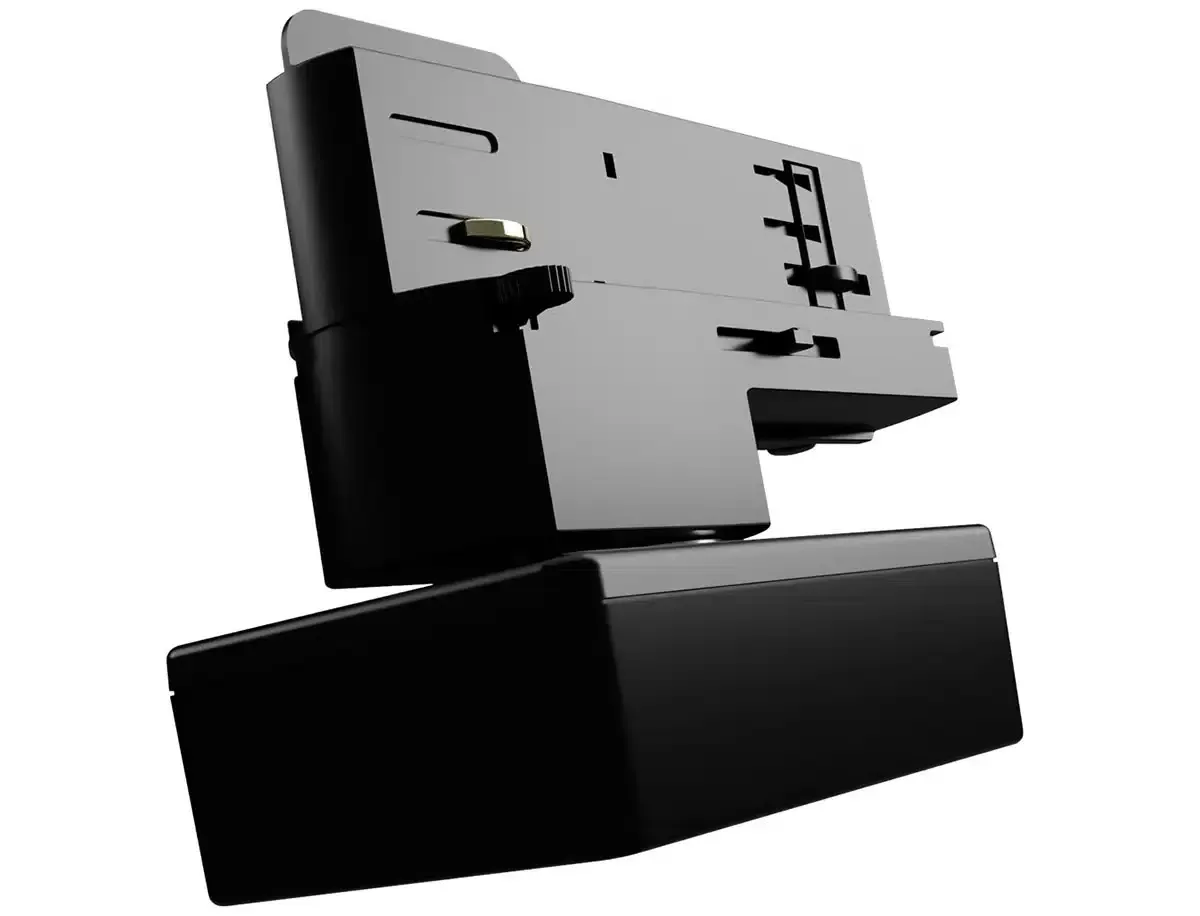

  • Black RAL 9005
  • Light

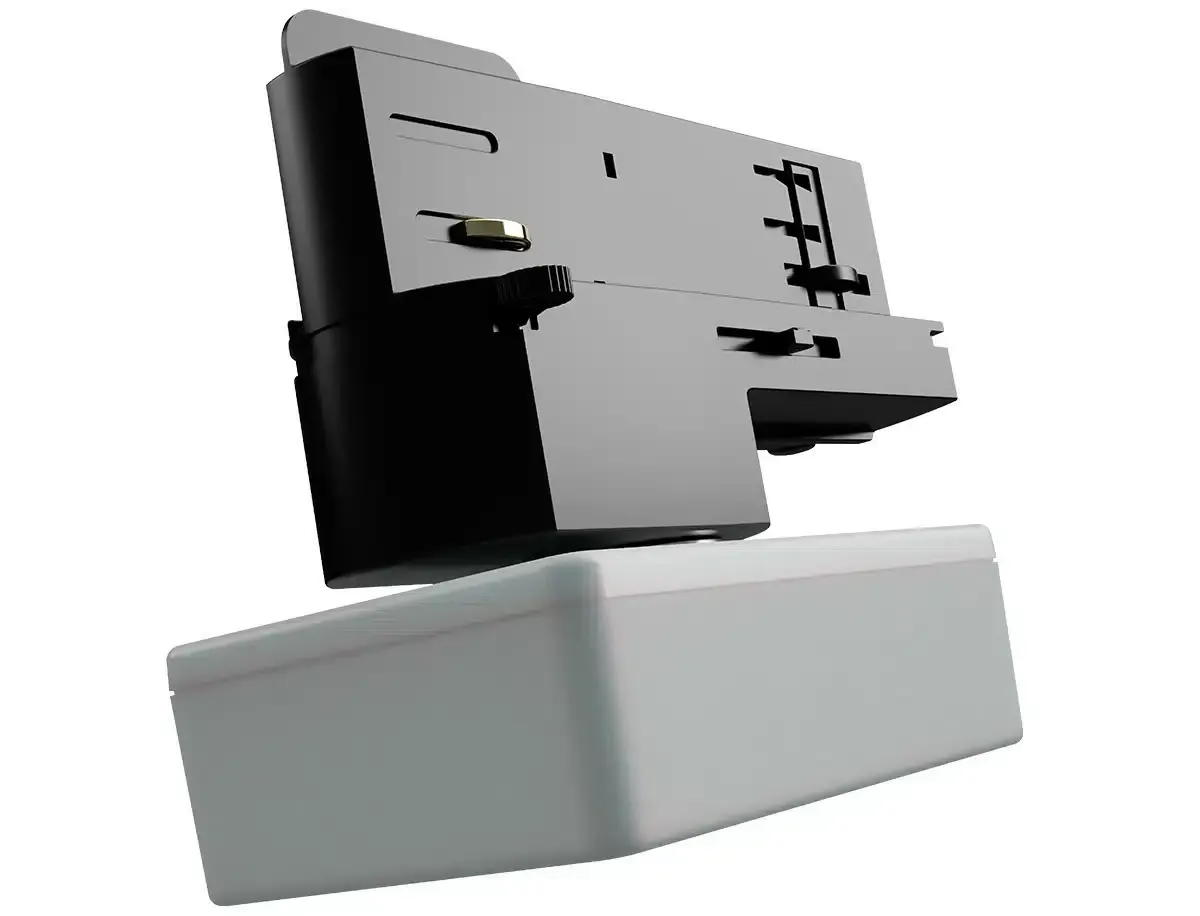

    Grey RAL7035
