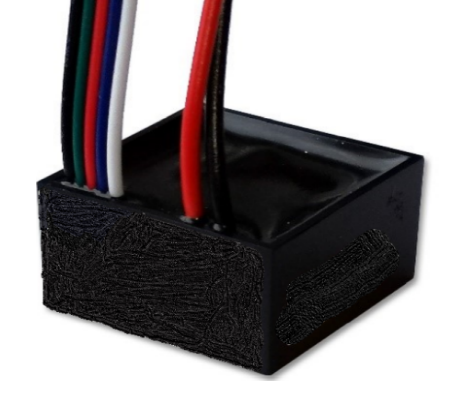

4Input

Article number: DAN.4INPUT

4INPUT is designed to control the
brightness and colour temperture of lighting loads
controlled by Mymesh dimmable devices.
Configurable via the Mymesh App.

Installation

  • 4INPUT is suitable for installing in the
    back of a wallbox, up to 4 push buttons (push on,
    push off, hold to dim).

    • Technical

    Electrical
    220-240Vac 50/60Hz
    Control
    4 volt-free contacts (open/close)
    Dimensions/weight
    40 x 40 x 20 mm / 30g
    IP rating
    IP20

    Network

  • Mymesh 2.4GHz

    • Features

  • Enables use of third-party switches on the Mymesh network
  • Low energy consumption by using the latest RF technology
  • 30% (minimum) to 90% energy savings with light control

    • Options

  • On-the-fly (re) commissioning with a Mymesh BLE Gateway and Mymesh commissioning app for iPad
  • Connect to third-party back-office / Light Management system (LMS) via a Mymesh Ethernet Gateway
